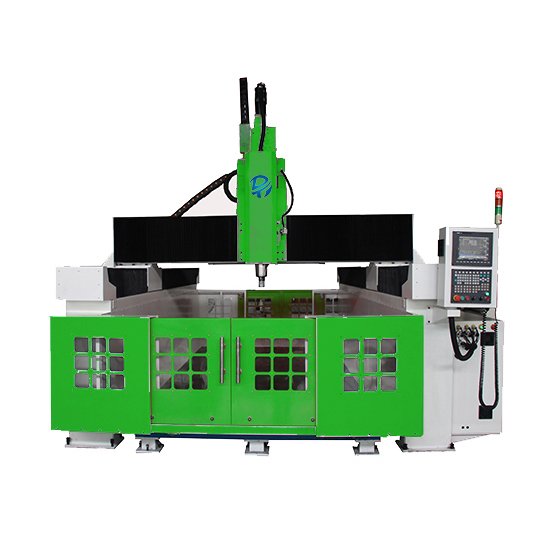

2550F1
描述
Application:
Mainly used for engraving on car, ship, wind power, air plane, foam, EPS industry.
Technical :
- Adopt width section imported liner guide rail and four row ball bearing sliding block.
- Adopt BT40 tool holder. Max speeding can reach 24000rpm/min
- Whole EPC working table after strict annealing and other heat treatment process in order to the lathe bed structure stability and rigidity.
- Adopt Taiwan SYNTEC system with functions of G code reading rapidly , online simulation and online monitoring.
- With RTCP（Rotation Tool Center Point ）function which can compensate tool wear. Not only improve the accuracy of the work piece and processing efficiency but also let the 5 axis CNC center reach it maximum efficiency.
Working size Width: 2500mm Length: 5000mm Height: 1000mm Running speed X axis: 55m/min Y axis:55m/min Z axis:18m/min Working speed 8-20m/min A axis ±120° C axis ±245° Spindle power Italy ATC HSD 9kw(10/15kw optional) Tool quantity 8 pieces round tool package (16 pcs optional) Control system Taiwan SYNTEC 5 axis control system Spindle speed 24000rpm/min Drive motor and driver Japan YASKAWA servo motor and driver Transmission system X/Y axis adopt rack and pinion ;Z axis adopt ball screw Voltage AC380V/50HZ
