1325X
描述

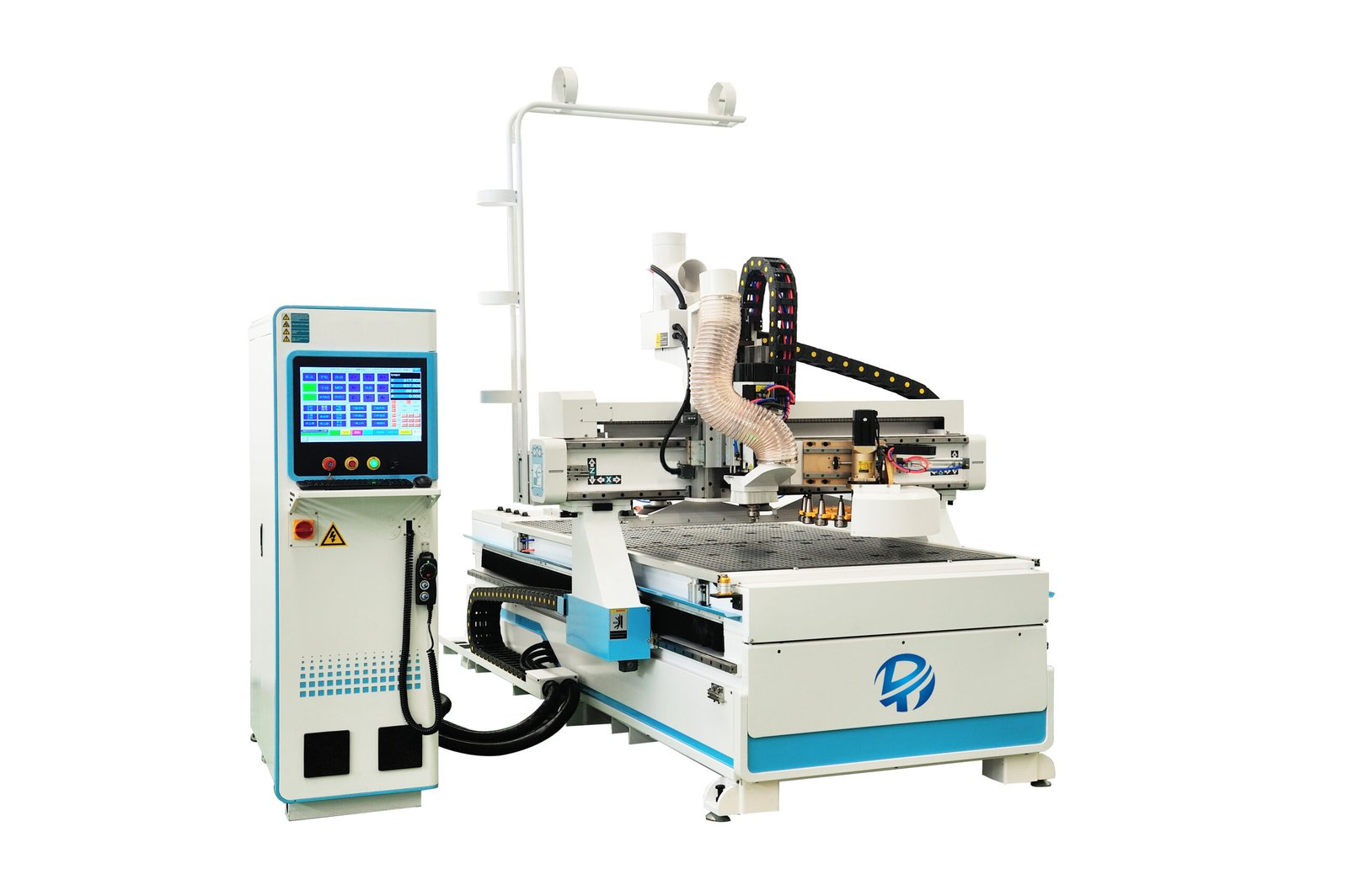

DT-1325X CNC router is very high cost performance machine of cabinet door. It is widely used in the market . Realize design and separate processing bill of customization wardrobe and cabinet quickly. X/Y/Z axis all adopt ball screw transmission with super high accuracy.
- Adopt Taiwan SYNTEC control system , G code reading rapidly, operation stability, interface simply and learn easily.
- Adopt 9 kw ATC spindle with 16 servo tools magazine. Stepless speed change when tools changer.
- Equip with automatic tool setting device let operator not only more convenient and fast operate the machine but also ensure the machining accuracy.
- Adopt new style tow chain there are 4 parts can separate signal line and power line according to specification that provide better protection against signal interference and prevents the cables from being screwed together during work.
- The lathe bed adopt thickness square steel welding and tempering and relieving welding residual stress ensure not be deformed after been used many years.
Applicable industry: cabinet door, interior door,solid wood furniture,panel furniture, plat engraving, hollow engraving etc.
Main function:automatic cut groove ,automatic reaming, automatic cutting,hollow engraving, plat engraving etc.
| Max air move speed | 40m/min | 40m/min |
|---|---|---|
| Max working speed | 15m/min | 15m/min |
| Positioning accuracy | ±0.05mm | ±0.05mm |
| Vacuum pump | 7.5KW water cooling | 7.5KW water cooling |
| Table structure | Vacuum adsorption | Vacuum adsorption |
| Guide rail | Taiwan square guide rail∣PMI30 | Taiwan square guide rail∣PMI30 |
| Transmission system | X/Y/Z adopt ball screw | X/Y/Z adopt ball screw |
| Tool Magazine capacity | 16 disk tool | 12+12 dual disks tool |
| Loading and unloading speed | 15m/min（optional） | 15m/min（optional） |
| Diameter of dust collection suction port | φ150mm | φ150mm |
| Working Air Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Working Voltage | AC380V/3PH/50Hz | AC380V/3PH/50Hz |
| Total power | 28KW（include dust collection and vacuum pump） | 28KW（include dust collection and vacuum pump） |
