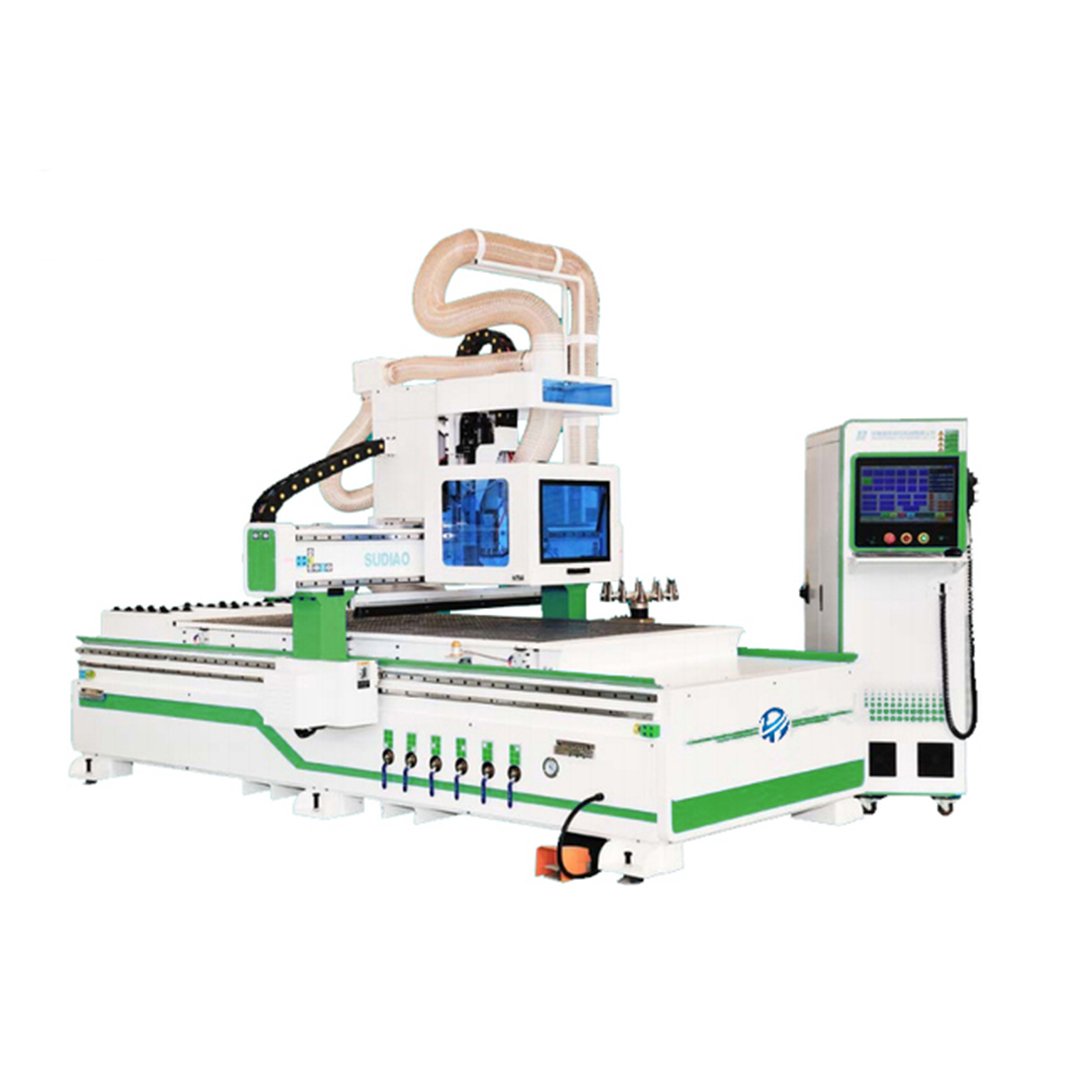

DT-1325S
描述
DT-1325S CNC router is very high cost performance machine of cabinet door. It is widely used in the market . General standard with 12 disk tools magazine. Realize design and separate processing bill of customization wardrobe and cabinet quickly.
- Adopt Taiwan SYNTEC control system , G code reading rapidly, operation stability, interface simply and learn easily.
- Adopt 9 kw ATC spindle with 12 servo tools magazine. Stepless speed change when tools changer.
- Equip with automatic tool setting device let operator not only more convenient and fast operate the machine but also ensure the machining accuracy.
- Adopt new style tow chain there are 4 parts can separate signal line and power line according to specification that provide better protection against signal interference and prevents the cables from being screwed together during work.
- The lathe bed adopt thickness square steel welding and tempering and relieving welding residual stress ensure not be deformed after been used many years.
Applicable industry: cabinet door, interior door,solid wood furniture,panel furniture, plat engraving, hollow engraving etc.
Main function:automatic cut groove ,automatic reaming, automatic cutting,hollow engraving, plat engraving etc.
| Model | DT-1325S | DT-1325S-C |
|---|---|---|
| Working area | 1220*2440*200mm | 1220*2440*200mm |
| Spindle power | 9KW ATC | 9KW ATC |
| Inverter | 11KW | 11KW |
| Drive system | Japan Yaskawa | Ncstudio |
| Control system | SYNTEC | Ncstudio |
| Max running speed | 80m/min | 80m/min |
| Max working speed | 25m/min | 25m/min |
