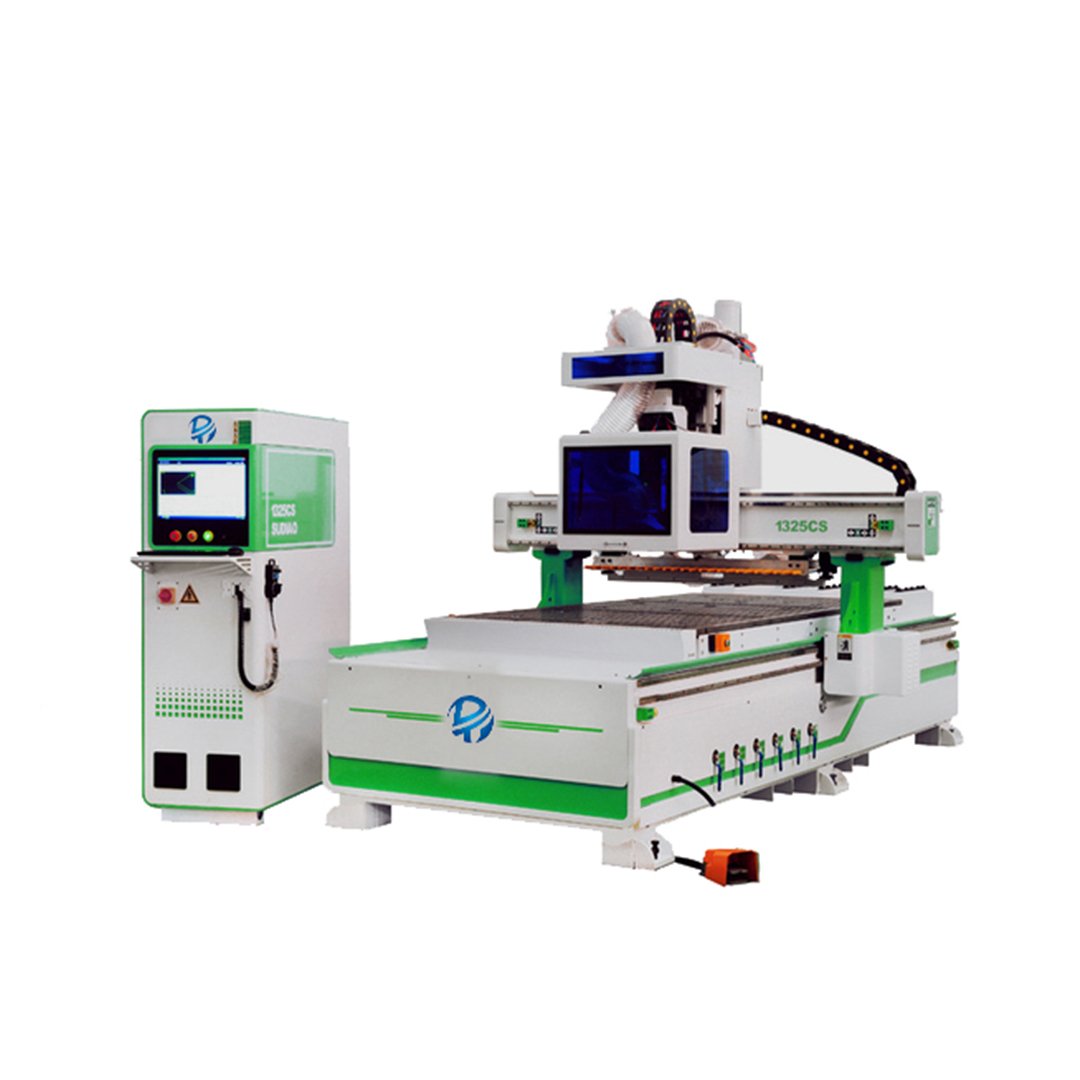

1325CS
描述
DT-1325CS CNC router is very high cost performance machine of cabinet door. It is widely used in the market . Adopt straight line tool changer follow up gantry moving.
- Adopt Taiwan SYNTEC control system , G code reading rapidly, operation stability, interface simply and learn easily.
- Adopt 9 kw ATC spindle with 12 tools magazine.
- Equip with automatic tool setting device let operator not only more convenient and fast operate the machine but also ensure the machining accuracy.
- Adopt new style tow chain there are 4 parts can separate signal line and power line according to specification that provide better protection against signal interference and prevents the cables from being screwed together during work.
- The lathe bed adopt thickness square steel welding and tempering and relieving welding residual stress ensure not be deformed after been used many years.
- The important electrical components in the control cabinet are made of Siemens electrical appliances. The circuit is equipped with filterwhich can eliminate the interference and ensure the stability of the control system.
Applicable industry: cabinet door, interior door,solid wood furniture,panel furniture, plat engraving, hollow engraving etc.
Main function:automatic cut groove ,automatic reaming, automatic cutting,hollow engraving, plat engraving etc.
| Model | DT-1325CS |
|---|---|
| Working area | 1220*2440*200mm |
| Spindle power | 9KW ATC |
| Inverter | 11KW |
| Drive system | Ncstudo |
| Control system | Ncstudo |
| Max running speed | 80m/min |
| Max working speed | 25m/min |
| Positioning accuracy | ±0.05mm |
| Vacuum pump | 7.5KW water cooling pump |
| Table structure | Vacuum suction |
| Guide rail | Taiwan square guide rail25∣SHAC25 |
| Transmission system | X/Y axis adopt rack and pinion,Z axis adopt ball screw |
| Transmission type | Reducer |
| Tool Magazine capacity | 12/16/18 |
| Diameter of suction port | φ150mm |
| Working Air Pressure | 0.6-0.8Mpa |
| Working Voltage | AC380V/3PH/50Hz |
| Total power | 26KW（include dust collection and vacuum pump） |
